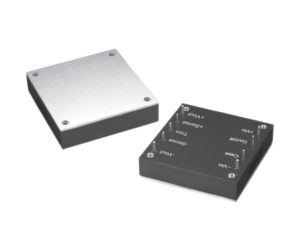

EHB200W
  • 200 Watt
  • Efficiency to 89%
  • Input under-voltage protection
  • Over temperature protection
  • Over voltage/current protection
  • 132-200W isolated output
  • 4:1 input range

EHB150
  • 150 Watt
  • 2:1 input range
  • Isolated output
  • Efficiency to 85%
  • 500kHz switching frequency
  • Continuous short circuit protection
  • Input/output isolation 1500VDC min.
  • Five-sided metal case

EHB100
  • 100 Watt
  • Efficiency up to 85%
  • 500kHz switching frequency
  • Continous short circuit protection
  • Five-sided metal case
  • 100W isolated output
  • 2:1 input range

EHB75W
  • 75 Watt
  • Regulated output
  • Efficiency up to 84%
  • 300kHz switching frequency
  • Input/ output isolation 1500VDC min.
  • Continuous short circuit protection
  • Five-sided metal case

EHB75
  • 75 Watt
  • Efficiency up to 85%
  • 300kHz switching frequency by single-version
  • 400kHz switchin frequency by dual-version
  • Continuous short circuit protection
  • Input/ output isolation 1500VDC min.
  • Five-sided metal case
  • 75W isolated output

EHB50W
  • 50 Watt
  • Efficiency to 84%
  • 300kHz switching frequency
  • Input/output isolation 1500VDC min.
  • 25-50W isolated output
  • 4:1 input range
  • Continous short circuit protection

EHB50
  • 50 Watt
  • Efficiency up to 85%
  • 300kHz switching frequency
  • Input/output isolation 1500VDC min.
  • 50W isolated output
  • 2:1 input range
  • Continous short circuit protection

E30ZW
  • 30 Watt
  • Efficiency < 85%
  • Short circuit protection
  • Input/output isolation 500VDC
  • Six-sided shield
  • PI-Input filter
  • Wide range input 2:1

E20UW
  • 20 Watt
  • Controlled
  • EN55011 Class A
  • Continuous short circuit protection
  • Input/output isolation 1500VDC min.
  • Output ± 10% adjustable
  • Dual version: Minimal load ca. 10%
  • Wide range input 4:1

E15ZW
  • 15 Watt
  • Wide range input 2:1
  • PI-Input filter
  • Continuous Short Circuit Protection
  • Input/output isolation
    500VDC min.
  • Noise suppression EN55011-A
  • Dual version
  • No minimum load required

E10ZW
  • 10 Watt
  • Continuous short circuit protection
  • Input/output isolation
    500VDC min.
  • Noise suppression EN55011-A
  • Dual Version: Minimal load
    ca. 10%
  • Wide range input 2:1
  • PI-Input filter

E10UW
  • 10 Watt
  • Continuous short circuit protection
  • Input/output isolation
    500VDC min.
  • Noise suppression EN55011 class A
  • Dual Version: Minimal load
    ca. 10%
  • Wide range input 4:1
  • PI-Input filter

E7,5DW
  • 7,50 Watt
  • PI-Input filter
  • Efficiency up to 83%
  • Input/output isolation 1500VDC min.
  • Short circuit protection
  • 24-Pin DIP Package
  • Wide range input 2:1
  • Dual Version: Minimal load ca. 10%

E6W
  • 6 Watt
  • 2″x2″ case
  • PI-Input filter
  • Efficiency up to 82%
  • Operat. Temp. Range -25°C~+71°C
  • Input/output isolation 500VDC min.

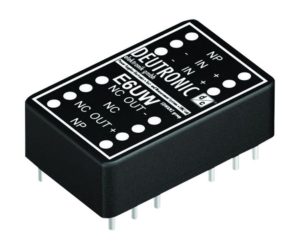

E6UW
  • 6 Watt
  • Input/output isolation 1500VDC min.
  • Short circuit protection
  • Dual Version: Minimal load ca. 10%
  • Option H 3kV
  • Wide range input 4:1
  • Footprint 24-pin DIL

E6DW
  • 6 Watt
  • Footprint 24-pin DIL
  • Input/output isolation 500VDC min.
  • Short circuit protection
  • Dual Version: Minimal load ca. 10%
  • Wide range input 2:1
  • PI-Input filter
  • Efficiency up to 82%

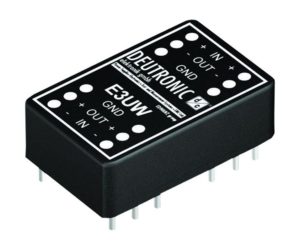

E3UW
  • 3 Watt
  • Input/output isolation 500VDC min.
  • Short circuit protection
  • Dual Version: Minimal load ca. 10%
  • Option H: 3kV
  • Wide range input 4:1
  • Footprint 24-pin DIL

E3DW
  • 3 Watt
  • Efficiency up to 80%
  • Footprint 24-pin DIL
  • Isolation 500VDC min.
  • Short circuit protection
  • Option H: 3kV
  • PI-Input filter
  • Wide range input 2:1

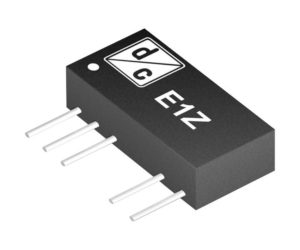

E1Z regulated
  • 1 Watt
  • Isolation 1000VDC min.
  • Continuous short circuit protection
  • UL94-0 Case material
  • Slight ripple & noise
  • Wide range input 2:1
  • 7-pin SIL package

E1Z unregulated
  • 1 Watt
  • Isolation 1000VDC min.
  • Operating temp. up to +70°C
  • Option/2: -45°C up to +85°C
  • 7-pin SIL package
  • UL 94V – O package material
  • Efficiency <75%, Option H 70% typ.

E1K
  • 1 Watt
  • Isolation 1000VDC min.
  • Operating temp. up to +70°C
  • Option/1: -25°C up to +85°C
  • Option/2: -45°C up to +85°C
  • High efficiency
  • 4-pin SIL package
  • UL 94V-0 Package Material

E0,25K
  • 0,25 Watt
  • Operating temp. up to +70°C
  • Option/1: -25°C up to +85°C
  • Option/2: -45°C up to +85°C
  • Isolation 1000VDC
  • High efficiency
  • 4-pin SIL package
  • UL 94 V-0 Package Material
